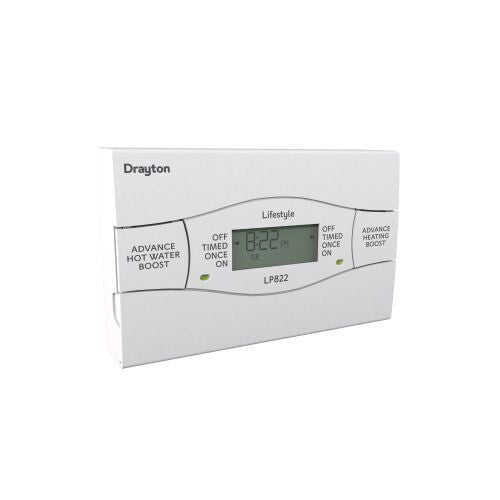

Drayton LP822 Universal Programmer 25464
Drayton LP822 Universal Programmer 25464
Regular price
£86.89
Regular price
Sale price
£86.89
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Drayton Universal LP822 Programmer allows for different programmes for weekdays and weekends, and independent timing of each channel. It features a built-in standard programme, allowing for three separate heating periods per day. The advance boost button can be used to provide 1, 2 or 3 hours of heating or hot water in advance to the set time periods - this saves the need to re-programme if you require a one-off burst of heating or hot water.
Features
- White
- 24 Hour, 5/2 Day or 7 Day
- Built-In Standard Programme
- Backlit Screen
- Holiday Mode
- Automatic Summer & Winter Time Change
- Boost & Advance Functions
- Suitable for Combination Boilers or Separate Zone Controls
- Suitable for Fully Pumped or Gravity Hot Water System
- Designed for Fixing Wiring Only
- Industry Standard Wall Plate
Specification
| Settings | 24 Hour, 5/2 Day or 7 Day |
| Operating Temperature | 0°C - 50°C |
| Storage Temperature | -20°C - 50°C |
| Operating Humidity | 25% - 90% |
| Storage Humidity | 15% - 95% |
| Timing Resolution | 1 Minute |
| Output | 230VAC |
| Rated Impulse Voltage | 2.5kW |
| Wiring | Designed for Fixed Wiring Only |
| Mounting | Industry Standard Wall Plate |
| Height | 93mm |
| Width | 148mm |
| Depth | 29mm |
| Part Code | 25464 |
| EAN | 5016254201068 |
