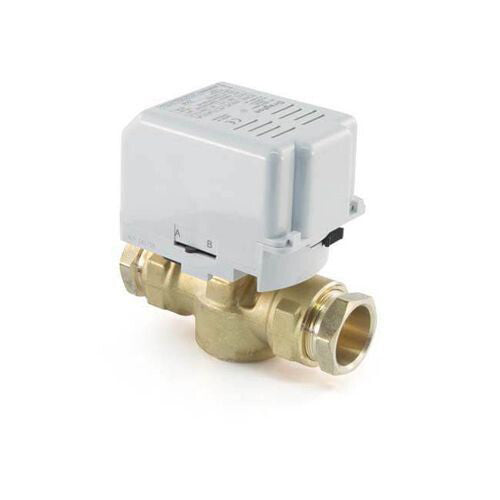

Drayton 28mm 2 Port Motorised Zone Valve 27205

Drayton 28mm 2 Port Motorised Zone Valve 27205

Regular price £127.59
Regular price Sale price £127.59
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

The Drayton 28mm 2 Port Motorised Zone Valve 27205 is an efficient and reliable valve designed for use in heating systems to control the flow of water. This valve features a 28mm diameter and a 2 port design, making it suitable for smaller heating applications. The motorised mechanism allows for easy remote operation and control, making it convenient for adjustments and monitoring. Additionally, this valve is compatible with zone control systems, ensuring precise temperature regulation in different areas of the building. The durable construction and high-quality components ensure long-lasting performance and functionality.

Features

  • Replaceable Actuators & Motors
  • Spring Return with 100% Tight Shut Off
  • Standard Valve Indicator - energise to open
  • Uni-Directional Valve Body
  • 5-Wire Installation
  • Manual Override Facility
  • Manual Lever for Filing & Draining
  • Easily Removable Snap-On Actuators

Specification

Max Static Pressure  8.6 Bar
Max Differential Pressure 0.7 Bar
Max Ambient Temperature 52°C
Water Temperature 93°C
Connection 28mm Compression
Max Load 1A (Inductive), 3A (Resistive)
Current Type AC
Motor Voltage 230V a.c. 5W
Power Voltage Supply 230V
Operating Time 14 Seconds (Motor), 6 Seconds (Spring Return)
Material Brass
Number of Ports 2
Wiring 5-Wire Installation
Cable Length 1m
Height 117mm
Depth 70mm
Width 124mm
Part Code 27205
EAN 5016254000036
