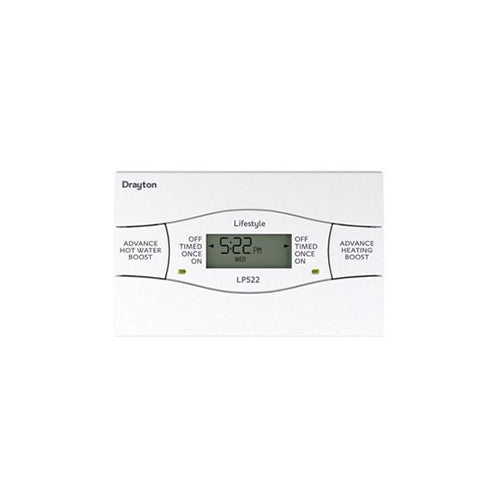

Drayton 5/2 Day Mark 4 LP522 Programmer 25475
Regular price
£74.99
Sale price
£74.99
Regular price
Unit price
per
Sale
Sold out
Price excluding VAT: £62.49
Couldn't load pickup availability
Secure checkout with
Payment methods
Description
The Drayton 5/2 Day Mark 4 LP522 Programmer allows for different programmes for weekdays and weekends, and independent timing of each channel. It features a built-in standard programme, allowing for three separate heating periods per day. The advance boost button can be used to provide 1, 2 or 3 hours of heating or hot water in advance to the set time periods - this saves the need to re-programme if you require a one-off burst of heating or hot water.
Features
- White
- 5/2 day
- Built-In Standard Programme
- Backlit Screen
- Holiday Mode
- Automatic Summer & Winter Time Change
- Boost & Advance Functions
- Suitable for Combination Boilers or Separate Zone Controls
- Suitable for Fully Pumped or Gravity Hot Water System
- Designed for Fixing Wiring Only
- Industry Standard Wall Plate
- 5016254200542
Specification
| Settings | 5/2 Day |
| Operating Temperature | 0°C - 50°C |
| Storage Temperature | -20°C - 50°C |
| Operating Humidity | 25% - 90% |
| Storage Humidity | 15% - 95% |
| Timing Resolution | 1 Minute |
| Output | 230VAC |
| Rated Impulse Voltage | 2.5kW |
| Wiring | Designed for Fixed Wiring Only |
| Mounting | Industry Standard Wall Plate |
| Height | 93mm |
| Width | 148mm |
| Depth | 29mm |
| Part Code | 25475 |
| EAN | 5016254200542 |
