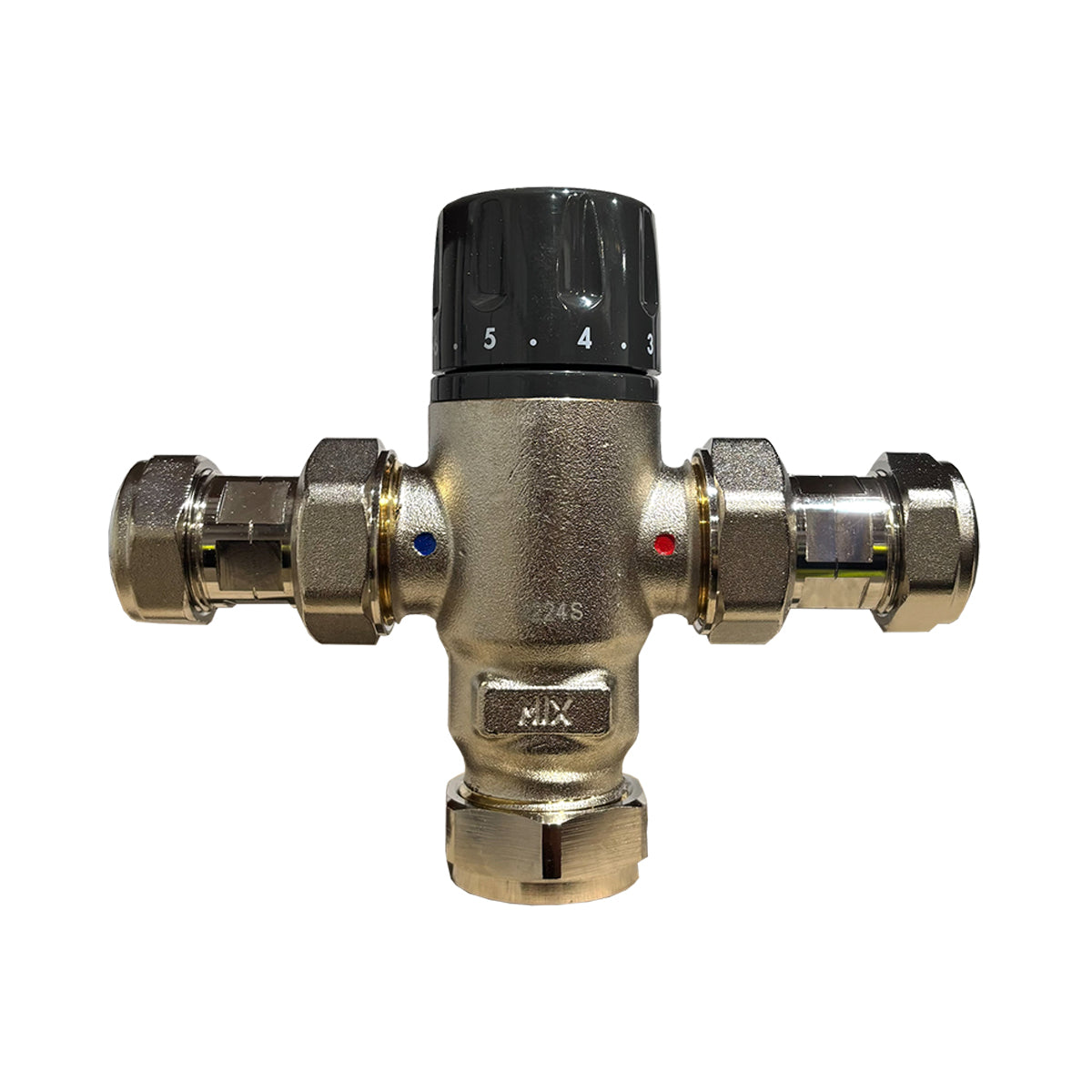

Caleffi Mixcal 22mm Thermostatic Mixing Valve 521122
Regular price
£124.99
Sale price
£124.99
Regular price
Unit price
per
Sale
Sold out
Price excluding VAT: £104.16
Couldn't load pickup availability
Secure checkout with
Payment methods
Maintaining consistent and safe water temperatures, the Caleffi Mixcal Thermostatic Mixing Valve plays a crucial role in hot water systems, even during fluctuations in hot and cold water supply or flow rates
The Caleffi Mixcal 22mm Thermostatic Mixing Valve features an integrated fail-safe mechanism that automatically stops the flow of mixed water if either the hot or cold supply fails, ensuring maximum safety for users. Fully compliant with engineering specification D08 and BS 7942, the Caleffi Thermostatic Mixing Valve is ideal for sensitive environments such as care homes, where maintaining consistent and safe water temperature is essential for user protection and comfort.
Features
- Adjustable anti-scale thermostatic mixing valve
- Use for domestic hot water systems
- Fails safe shut off flow
Specification
| Connection | 22mm |
| Max Working Pressure (static) | 14 Bar |
| Max Working Pressure (dynamic) | 5 Bar |
| Max Inlet Temperature | 85°C |
| Temperature Range | 30°C - 65°C |
| Accuracy | +/- 2°C |
| Min temperature difference between inlet hot & outlet mixed water | 15°C |
| Complies with | BS EN 1287:1999 |
| Body | DZR - chrome plated |
| Controlling Element | PPO - thermoplastic |
| Springs | Stainless Steel |
| Seals | EPDM |
| Part Code | 521122 |
