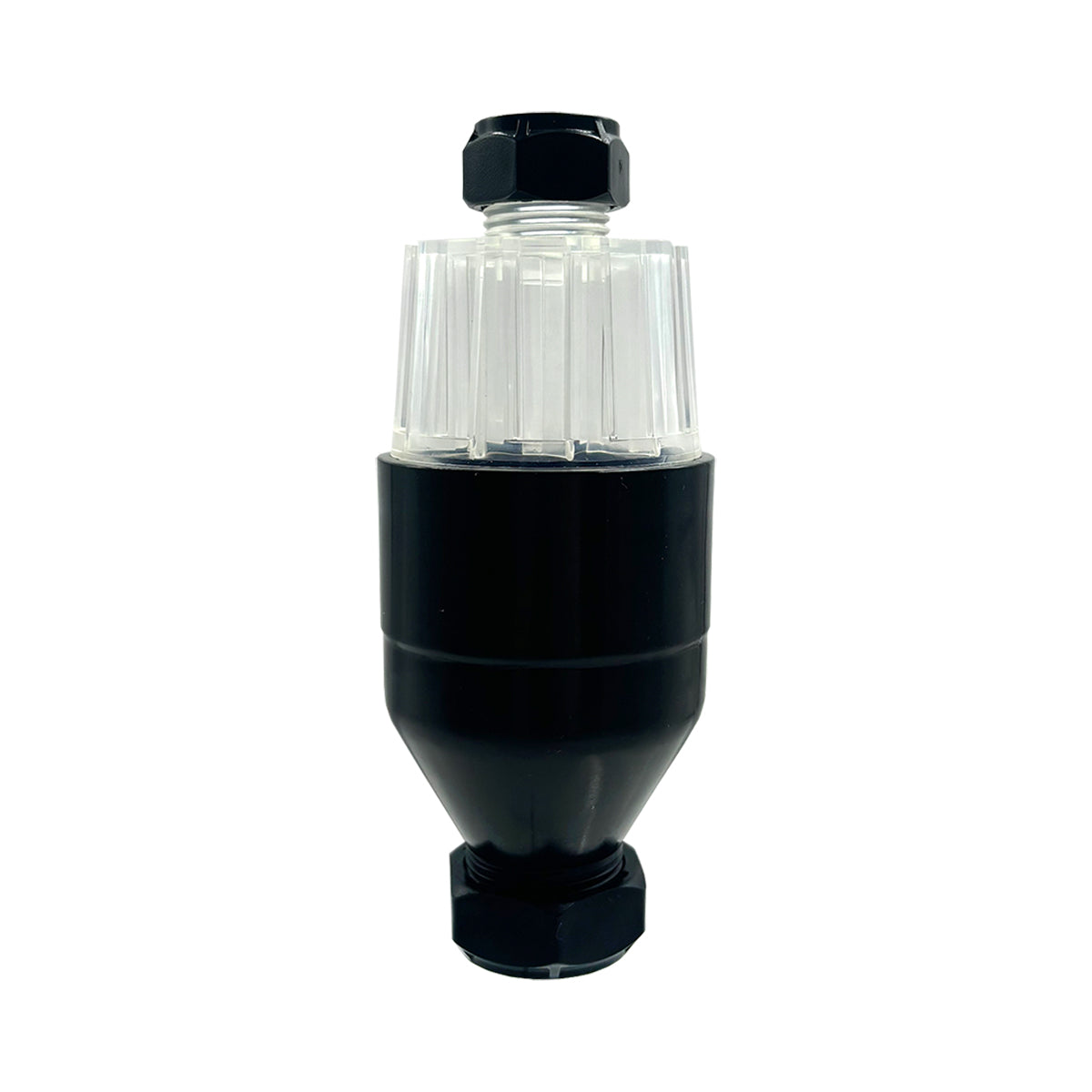

Altecnic 15mm x 22mm Dry Trap Tundish 128-2010

Altecnic 15mm x 22mm Dry Trap Tundish 128-2010

Regular price £16.64
Regular price Sale price £16.64
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

A Tundish is a crucial component in a plumbing system and will have water running through if there is a problem in the system. The discharge from the tundish can be piped directly into a drain pipe, unlike a traditional tundish, creating an air gap that prevents the spread of smells and odours from passing up the pipe to the tundish. The air gap in the Altecnic Dry Trap Tundish 128-2010 also helps prevent backflow and cross-contamination of clean water with potentially harmful substances. This crucial component plays a vital role in maintaining the integrity and safety of the plumbing system, ultimately protecting the health and well-being of individuals using the water supply.

Features

  • Prevents backflow
  • Internal stainless steel spring loaded disc mechanism prevents the spread of smells & odours
  • Prevents the need to install both a tundish and a dry trap
  • Anti-splash design with transparent chamber provides a visual indicator for discharge

Specification

Inlet Connection 15mm
Outlet Connection 22mm
Max Temperature 120°C
Bottom Body POM F20-03
Top Body Transparent ABS PA758
Top Funnel Ring & Bottom Seat POM F20-03
Washer Seat Elastomer EPDM
Spring Stainless Steel
Compression Nuts & Olives POM F20-03
Conforms to BS EN 1717
Part Code 128-2010

If you are interested in purchasing in bulk please get in touch with us at support@arcanu.com
