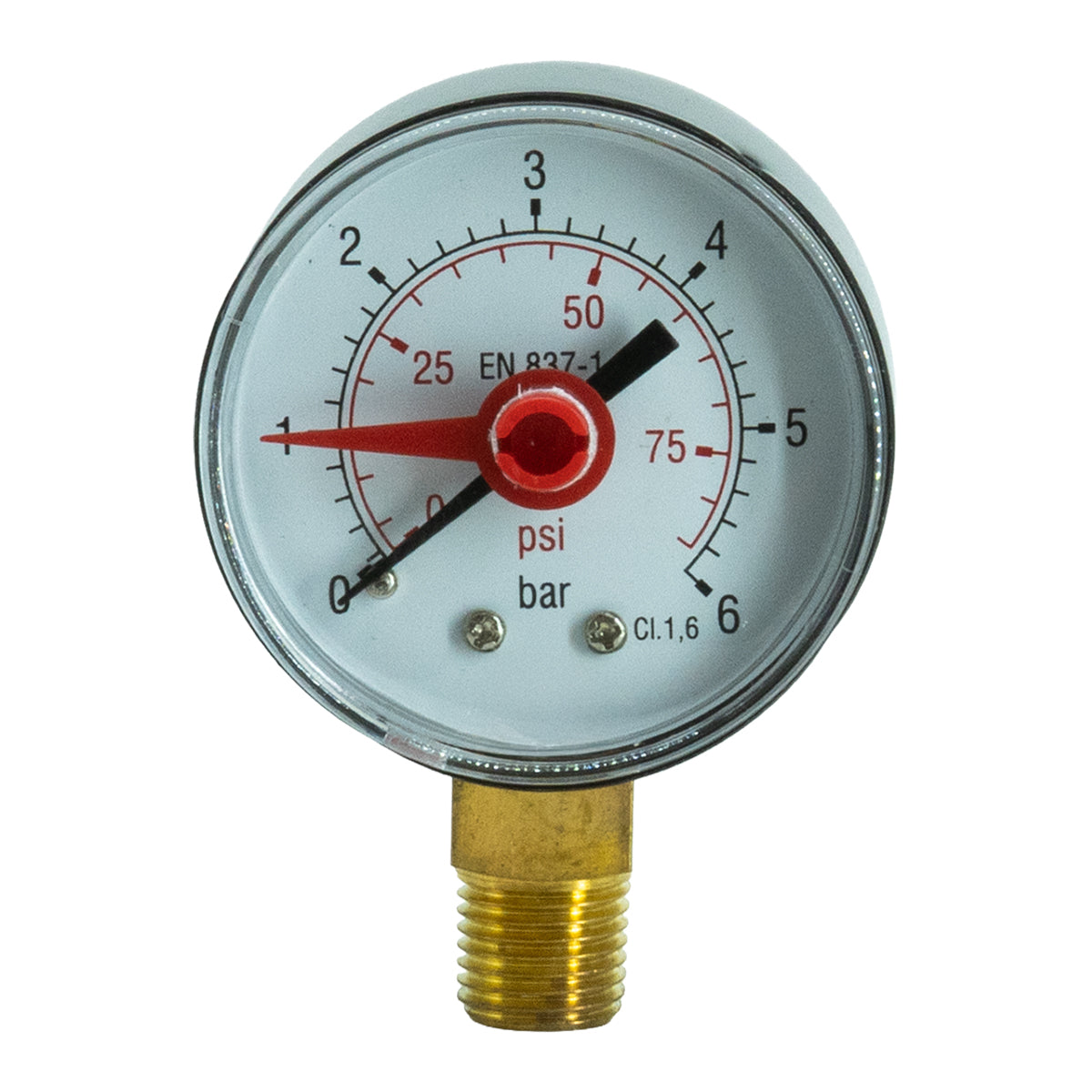

50mm Pressure Gauge, 0-6 Bar, ¼" BSP Bottom Connection

50mm 0-6 Bar Pressure Gauge

Check pressure at a glance in plumbing, heating and water systems with this compact mechanical gauge. Its 50mm dial gives a clear, easy-to-read view, while the bottom ¼" BSP male connection provides a straightforward fit for compatible systems.

Key Features

• 0-6 bar scale on a clear, easy-to-read dial
• 50mm diameter with bottom ¼" BSP male connection
• Varnished steel case and brass connection
• Class 2.5 accuracy to EN 837-1 and IP31 protection rating
• Maximum fluid temperature: 60°C
• Maximum continuous pressure: ¾ of full scale; fluctuating pressure: ⅔ of full scale

Typical Applications

For pressure monitoring in central heating, boiler, domestic water, pressurised water and pump systems. Check the connection, pressure range and operating limits against your installation before fitting.
