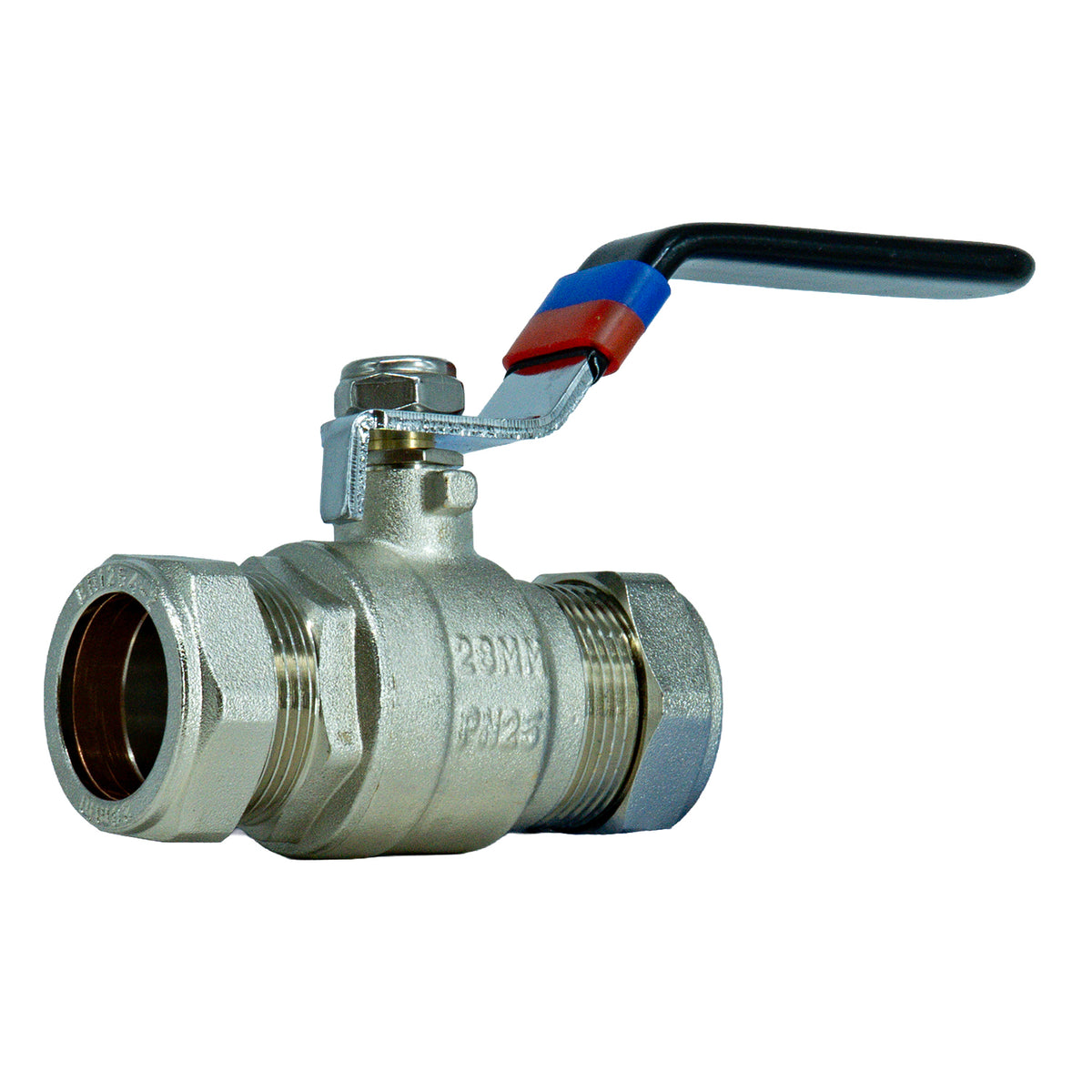

28mm Full Bore Lever Ball Valve | Compression | WRAS Approved

When a 28mm line needs a dependable shut-off, this valve delivers. The 28mm Full Bore Lever Ball Valve uses compression connections on both ends and a quarter-turn lever that isolates flow quickly and without fuss. Its full-bore design keeps restriction to a minimum, and WRAS approval means it's ready for potable water from the moment it's fitted.

Key Features

• 28mm compression x compression (C×C) connections
• Full-bore design for minimal flow restriction
• WRAS approved for potable water systems
• Quarter-turn lever for quick and easy isolation
• Suitable for hot and cold water applications
• Chrome-plated lever action
• Supplied with compression nuts and olives
• Interchangeable red and blue identification tabs
• Maximum working pressure: 25 bar
• Maximum working temperature: 110°C

Typical Applications

Ideal for domestic and commercial plumbing, water supply pipework, heating systems and any installation where dependable isolation of a 28mm water supply is required.

Technical Specifications
