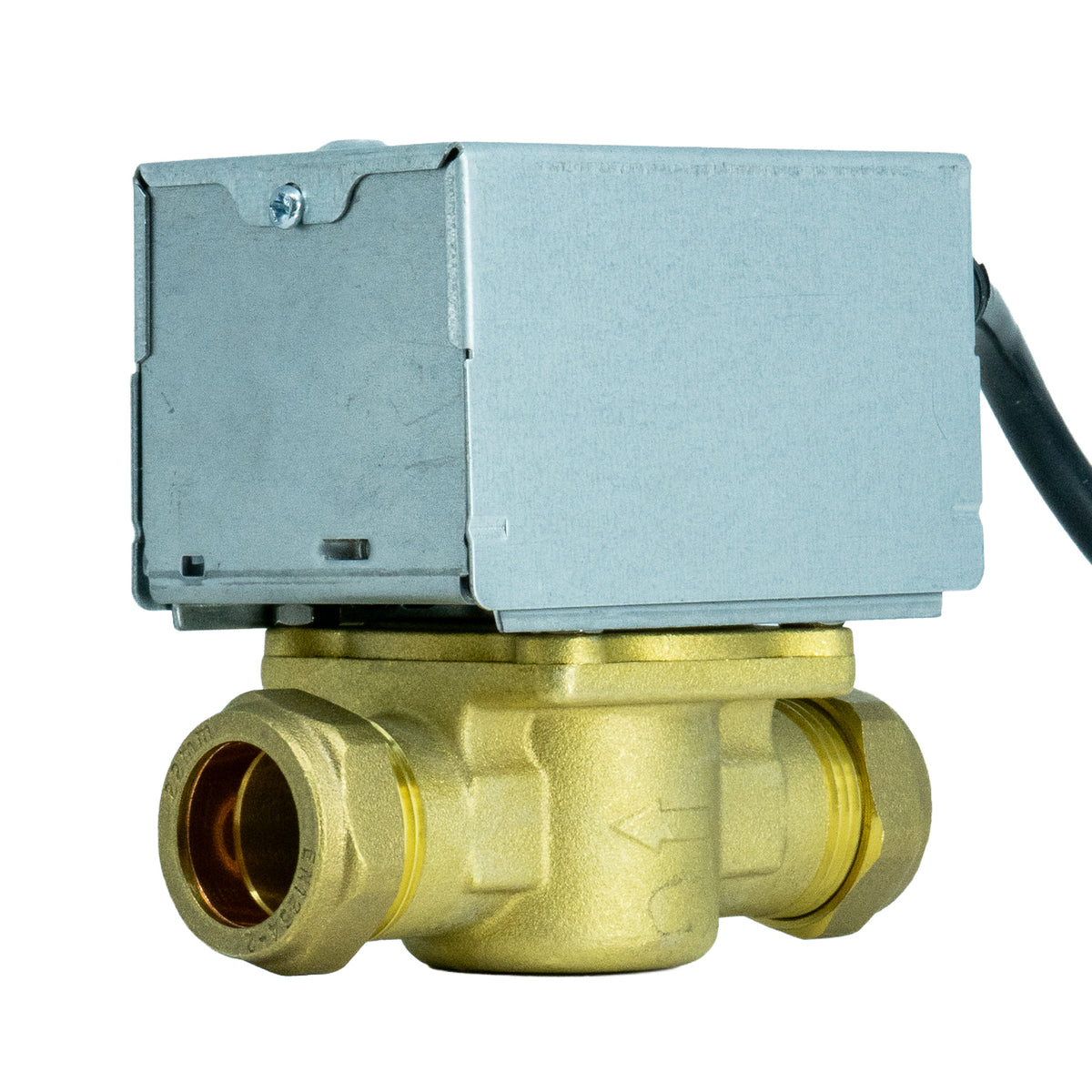

22mm 2 Port Motorised Zone Valve | Spring Return | 230V

Zone control done properly. The 22mm 2 Port Motorised Zone Valve gives you automatic, reliable control over individual heating circuits, whether that's a central heating zone, an underfloor loop or a hot water circuit. Spring-return operation means it fails safely, and the manual override lever keeps you moving during system fills or drains without having to cut power.

One detail worth noting: the powerhead can be swapped out without draining the system, which saves considerable time on site.

Key Features

• 22mm 2 port motorised zone valve for central and underfloor heating
• Spring-return operation for reliable automatic control
• Manual operating lever for system filling and draining
• 230V AC motor with low 6W power consumption
• Powerhead replaceable without draining the system
• Quiet operation with fast opening and closing
• Suitable for central heating and underfloor heating
• Maximum static pressure: 8.6 bar
• Fluid temperature range: 5°C to 88°C
• Supplied with a 1m pre-wired cable

Typical Applications

Ideal for controlling individual heating zones, including central heating, underfloor heating and domestic hot water systems. Suitable for new installations and as a direct replacement for an existing 22mm 2 port motorised valve.
