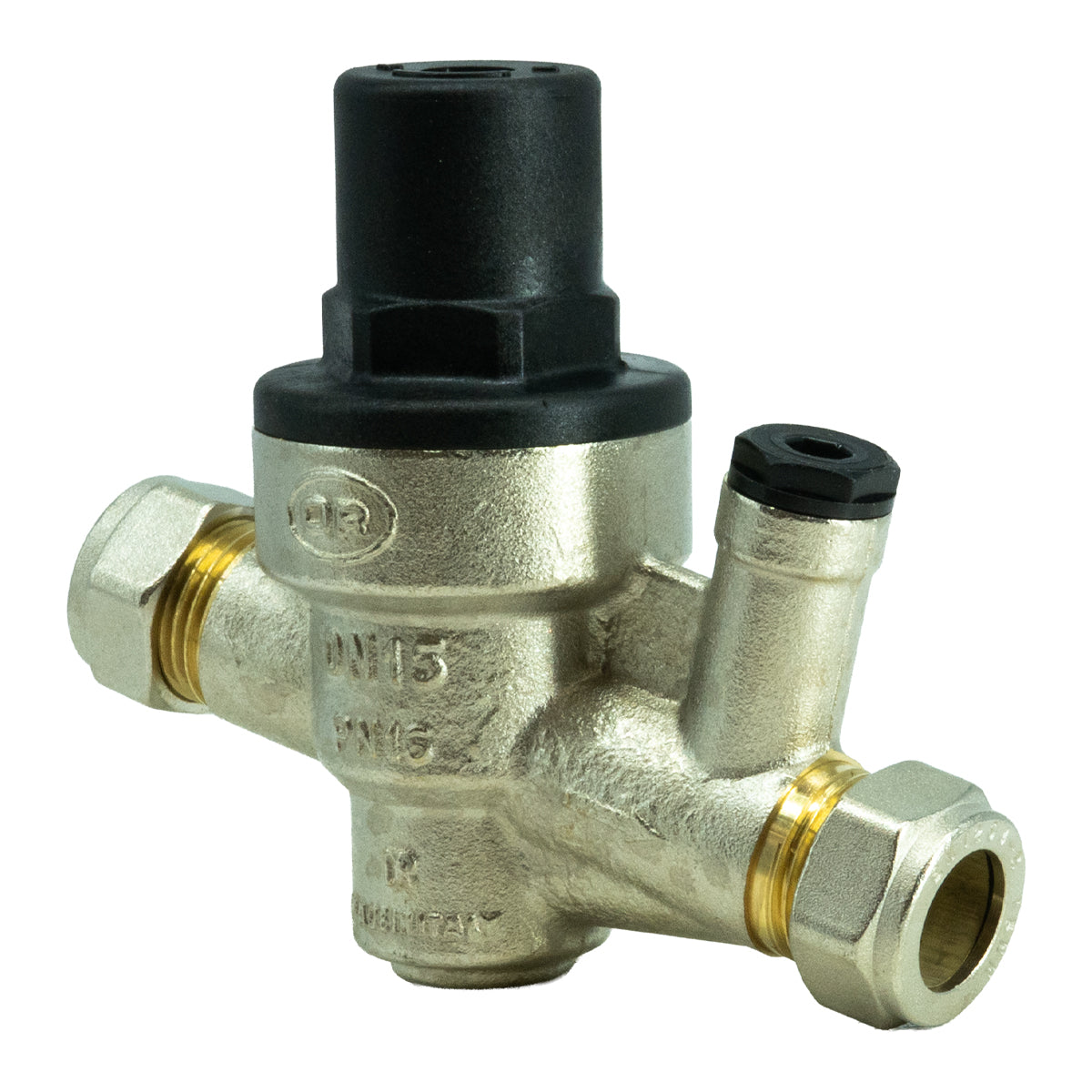

15mm Pressure Reducing Valve | 1-6 Bar | FBSP

This compact 15mm pressure reducing valve regulates excessive water pressure and maintains a controlled downstream pressure in domestic and commercial plumbing systems. Its adjustable outlet pressure range of 1-6 bar lets you set it to suit the installation.

The valve has an integral filter and compensated pressure regulation system, helping to keep outlet pressure stable even as inlet pressure varies. Its compact design and female connections suit a range of water supply and pressure-control applications.

Key Features

• 15mm pressure reducing valve
• 1-6 bar adjustable outlet pressure range
• Maximum working pressure of 16 bar
• Female BSP connections
• Integral filter for protecting the valve from debris
• Compensated pressure regulation
• Compact design for space-restricted installations
• Brushed chrome DZR brass body
• Suitable for domestic and commercial water systems
• WRAS approved
• 84mm overall length
• 46mm body diameter

Typical Applications

• Domestic water supply systems
• Cold water installations
• Hot water systems
• Boiler and plumbing installations
• Commercial water systems
• Protecting appliances from excessive water pressure
• Maintaining stable downstream water pressure

Technical Specifications
