40mm 0–6 Bar Pressure Gauge, ¼" BSP Rear Connection

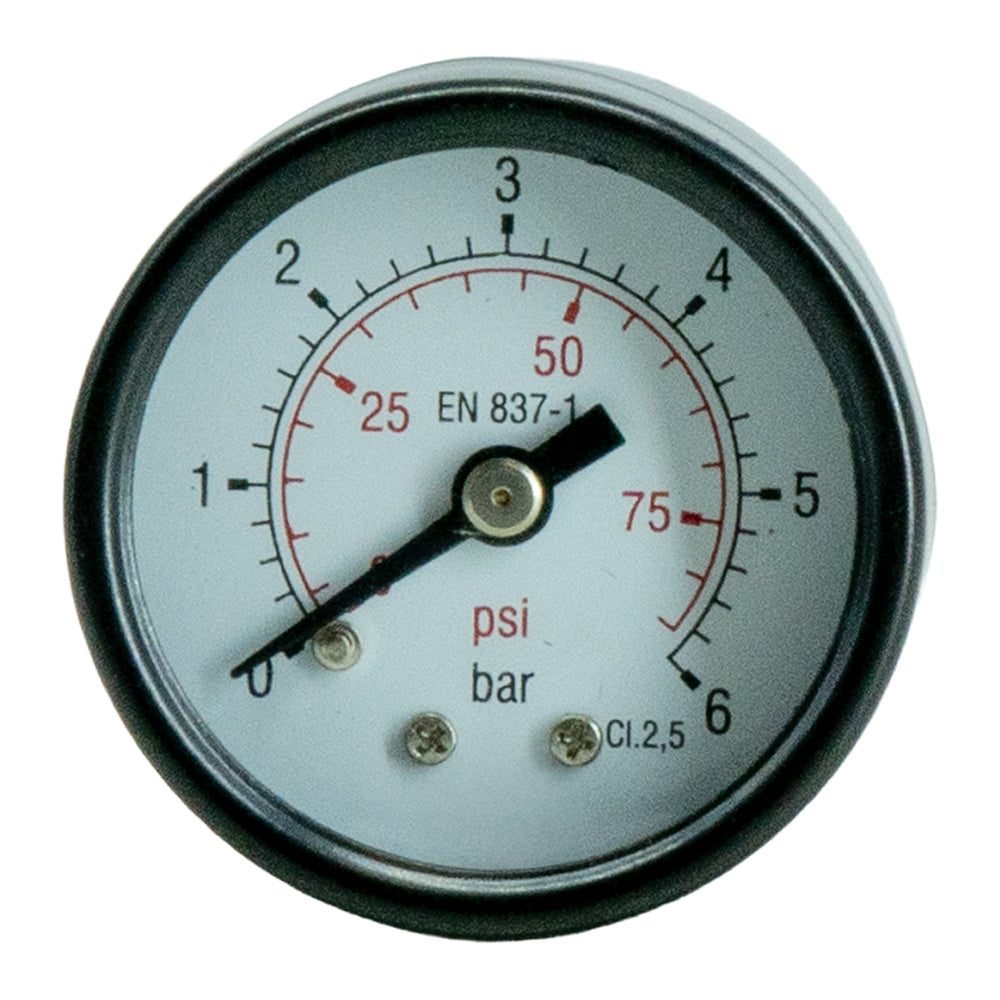

40mm 0–6 Bar Pressure Gauge

Check pressure at a glance in plumbing, heating and water systems with this compact mechanical gauge. Its 40mm dial suits installations where space is limited, while the central rear ¼" BSP male connection provides a straightforward fit for compatible systems.

Key Features

• 0–6 bar scale on a clear, easy-to-read dial
• 40mm diameter with central rear ¼" BSP male connection
• Varnished steel case and brass connection
• Class 2.5 accuracy to EN 837-1 and IP31 protection rating
• Maximum fluid temperature: 60°C
• Maximum continuous pressure: ¾ of full scale; fluctuating pressure: ⅔ of full scale

Typical Applications

For pressure monitoring in central heating, boiler, domestic water, pressurised water and pump systems. Check the connection, pressure range and operating limits against your installation before fitting.

Technical Specifications
