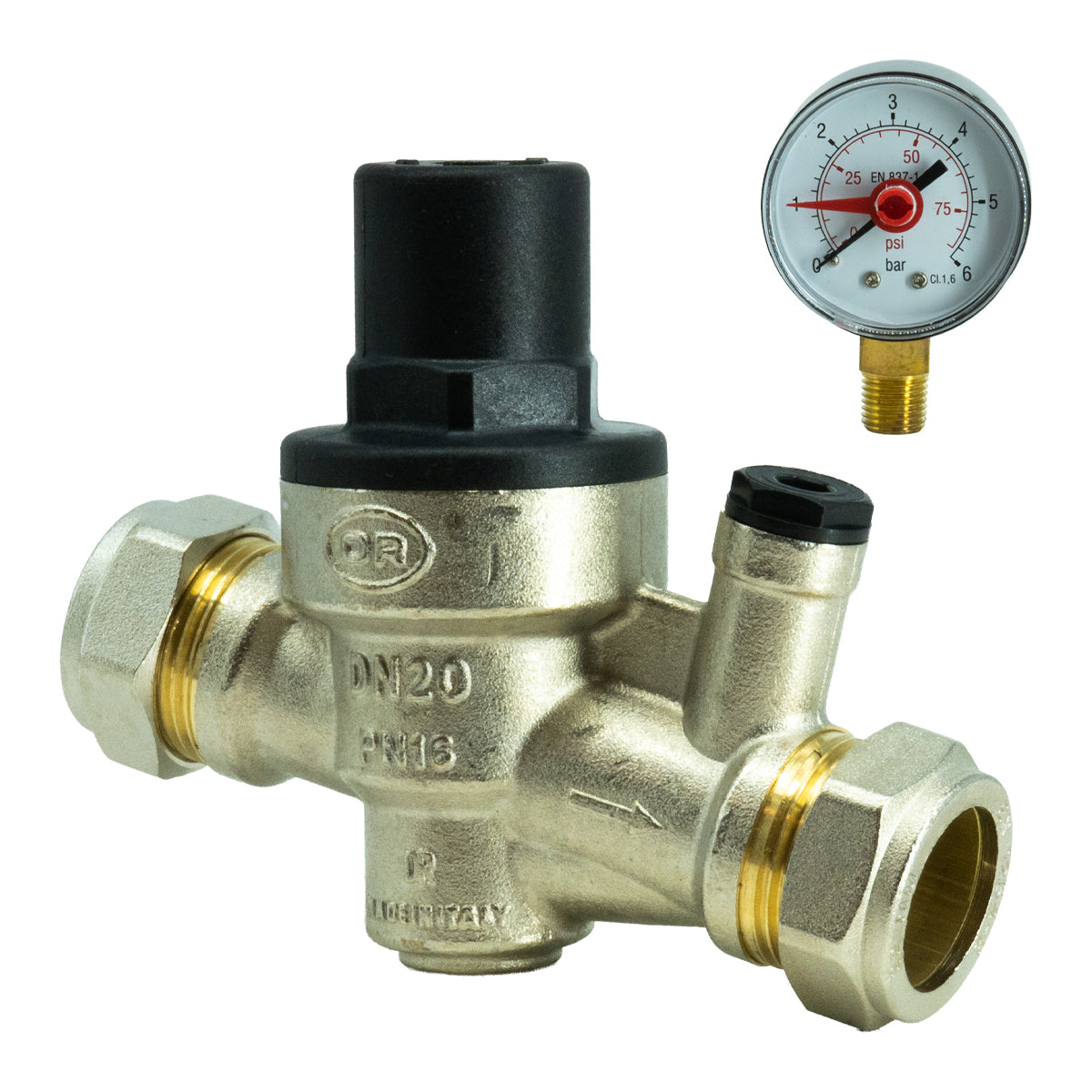

22mm Pressure Reducing Valve | 1-6 Bar | with Gauge

This 22mm pressure reducing valve automatically reduces and stabilises water pressure in domestic, commercial and sanitary water systems. Its adjustable outlet pressure range of 1-6 bar lets you set the valve to suit the installation.

The valve has an integrated strainer that helps keep silt, rust and scale away from downstream equipment, together with compensated pressure regulation for stable outlet pressure. A pressure gauge is included for convenient monitoring of the regulated pressure, and the valve is designed for straightforward disassembly for routine cleaning and filter maintenance.

Key Features

• 22mm pressure reducing valve
• 1-6 bar adjustable outlet pressure range
• Female BSP connections
• Integrated pressure gauge
• Maximum working pressure: 16 bar
• Maximum working temperature: 80°C
• Integrated strainer for debris protection
• Durable EPDM diaphragm
• O-ring seal
• Brass construction
• Easy to disassemble for routine maintenance
• Suitable for domestic, commercial and sanitary water systems

Typical Applications

• Domestic water supply systems
• Cold water installations
• Hot water systems
• Commercial plumbing systems
• Sanitary water systems
• Irrigation systems
• Protecting downstream appliances and equipment
• Maintaining stable water pressure

Technical Specifications
