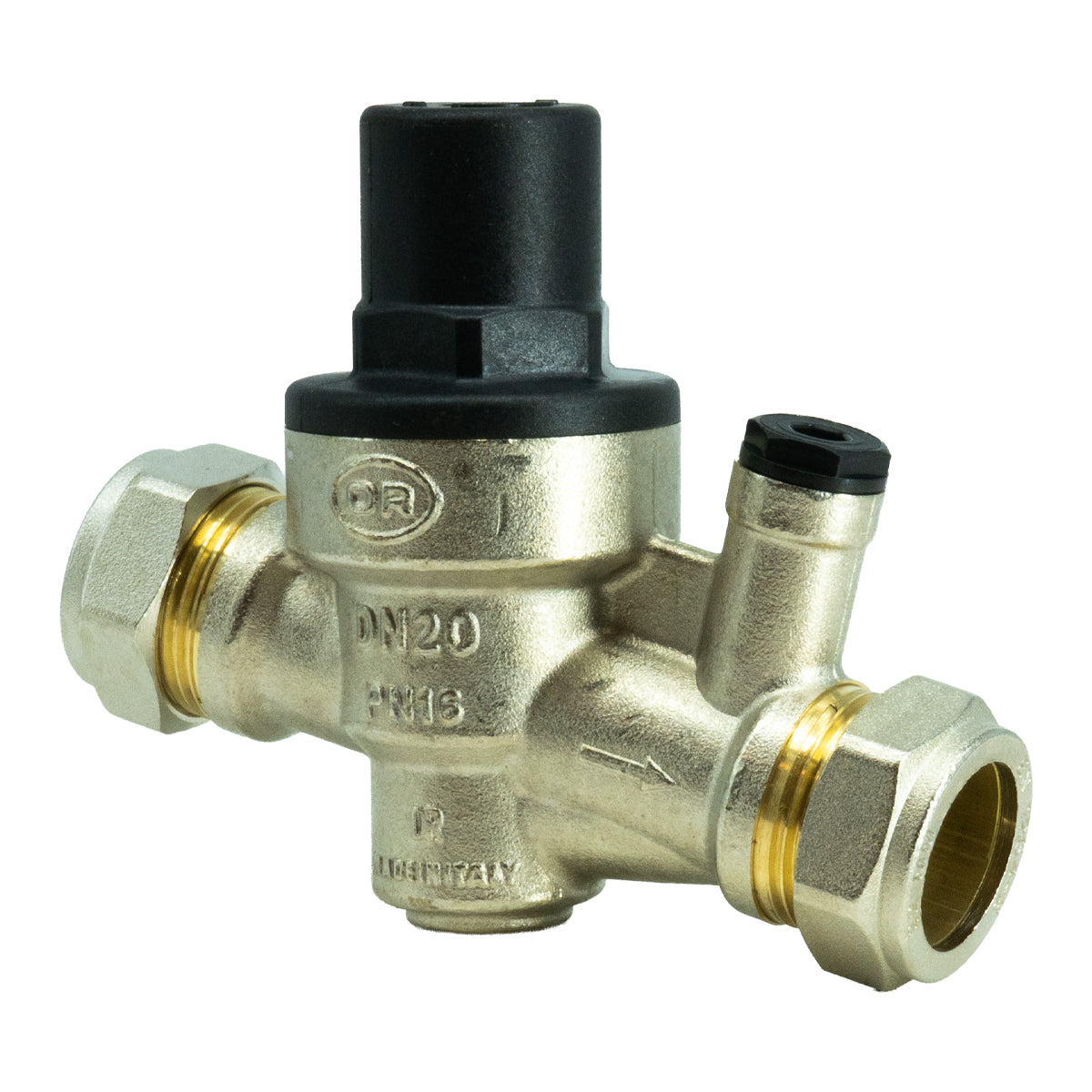

22mm Pressure Reducing Valve | 1-6 Bar | FBSP

This compact 22mm pressure reducing valve automatically reduces and stabilises water pressure in domestic and commercial plumbing systems. With an adjustable outlet pressure range of 1-6 bar, downstream pressure can be set to suit the installation.

The valve has an integrated strainer that helps keep silt, rust and scale away from downstream equipment, while compensated pressure regulation keeps outlet pressure stable. It's supplied with a pressure gauge for monitoring the reduced downstream pressure.

Key Features

• 22mm pressure reducing valve
• 1-6 bar adjustable outlet pressure range
• Female BSP connections
• Maximum working pressure: 16 bar
• Maximum working temperature: 80°C
• Integrated strainer for debris protection
• Compensated pressure regulation
• EPDM diaphragm
• Supplied with pressure gauge
• Designed for straightforward cleaning and filter maintenance
• Suitable for domestic and commercial water systems
• Brass construction

Typical Applications

• Domestic water supply systems
• Cold water installations
• Hot water systems
• Plumbing installations
• Commercial water systems
• Residential water systems
• Irrigation systems
• Protecting downstream appliances and equipment
• Maintaining stable water pressure

Technical Specifications
