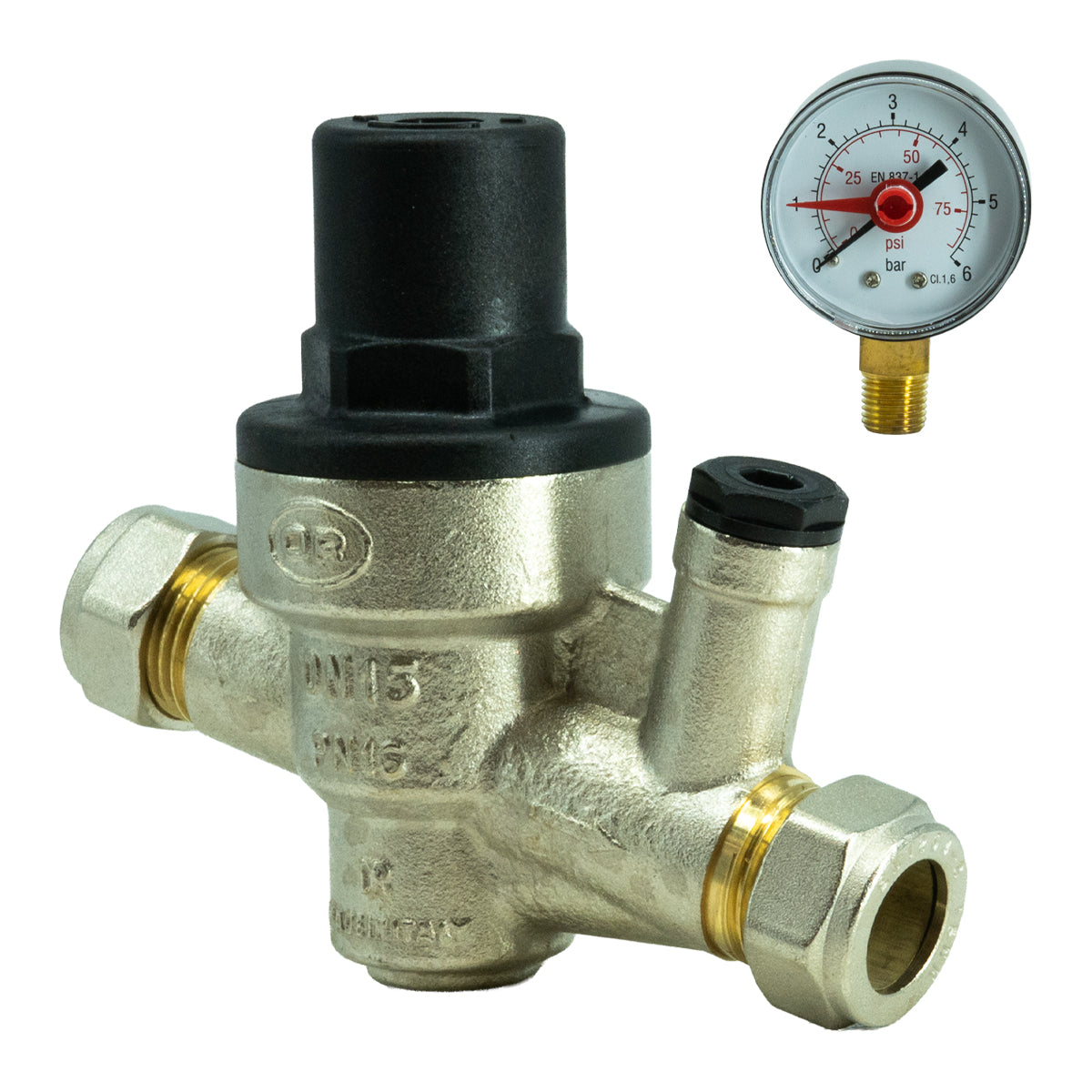

15mm Pressure Reducing Valve | 1-6 Bar | with Gauge

This compact 15mm pressure reducing valve reduces and stabilises water pressure in domestic and commercial plumbing systems. Its adjustable outlet pressure range of 1-6 bar lets you set downstream pressure to suit the installation.

The valve has an integrated filter and compensated pressure regulation to help keep outlet pressure stable, together with a pressure gauge for convenient monitoring of the regulated downstream pressure. Its compact design suits a wide range of water pressure control applications.

Key Features

• 15mm pressure reducing valve
• 1-6 bar adjustable outlet pressure range
• Female BSP connections
• Integrated pressure gauge
• Maximum working pressure: 16 bar
• Integrated filter for debris protection
• Compensated pressure regulation
• Diaphragm-operated design
• Compact construction
• Suitable for domestic and commercial water systems
• Designed for stable downstream pressure control

Typical Applications

• Domestic water supply systems
• Cold water installations
• Hot water systems
• Plumbing installations
• Commercial water systems
• Water pressure regulation
• Protecting downstream appliances from excessive pressure
• Monitoring and maintaining stable water pressure

Technical Specifications
